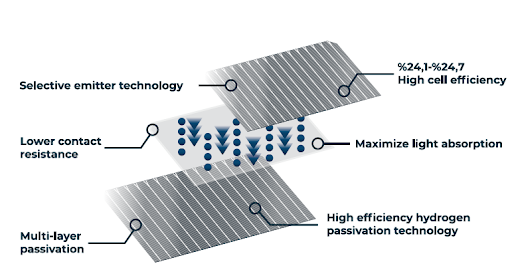

More Power Output with N-Type TOPCon (Tunnel Oxide Passivated Contact) Cell Technology
TOPCon (Tunnel Oxide Passivated Contact) cells improve the cell's electron collection efficiency and cell performance by adding a thin layer of tunnel oxide layer behind the conventional structure. The N-Type structure of TOPCon cells offers low power losses, resistance to adverse effects such as PID and LID, long lifetime and better performance in low light conditions.

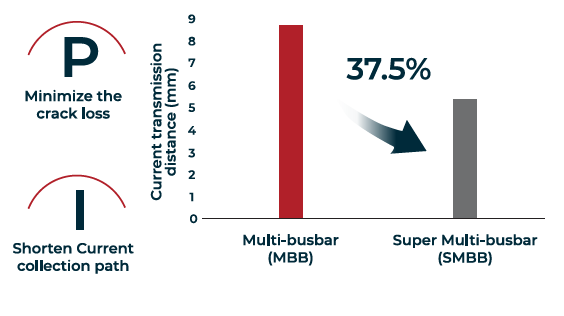

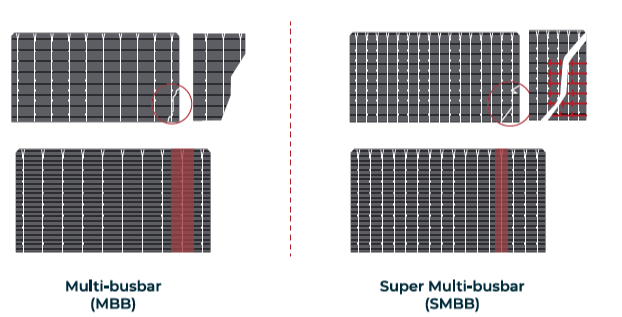

Super Multi-Busbar (SMBB) Cell Minimises Power Loss Due To Micro-Cracks
The thinner finger structure on the 16 busbar cells has been designed to minimise the current collection distance and uniform soldering stress. All improvements significantly reduce microcrack loss and increase the output power of the cell.

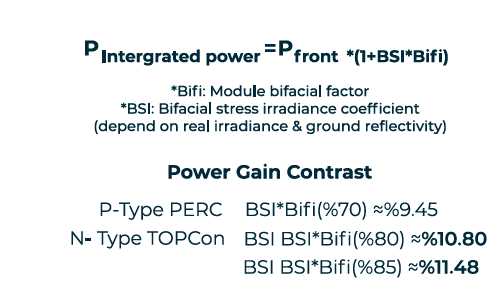

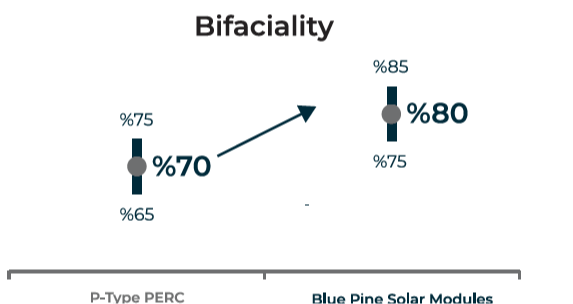

Bifaciality

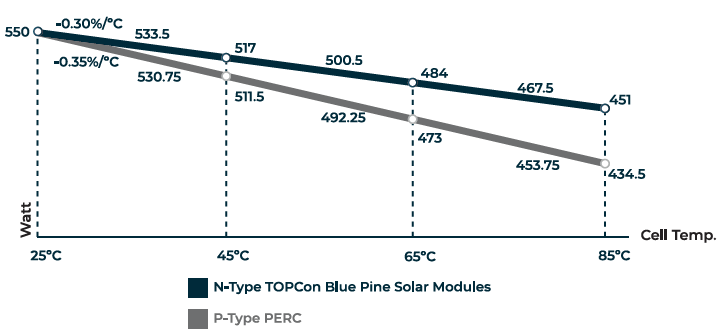

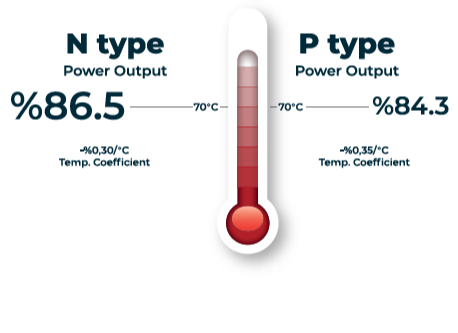

Better Temperature Coefficient
Better Temperature Coefficient
The power output of the N-type TOPCon Blue Pine Solar Module is 0.75% higher than that of the P-type PERC due to the better temperature coefficient. in the same environment conditions, the operating temperature of the Blue Pine Solar Module is >1% lower than that of P-type solar modules of the same specification. Under high temperature conditions, the advantage Blue Pine Solar Modules are further increased to ~2% higher

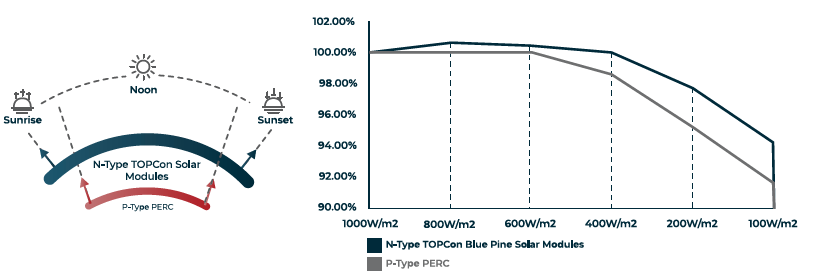

Better Performance Even in Low Light Conditions
TOPCon (Tunnel Oxide Passivated Contact) hücreler konvansiyonel yapının arkasına ince bir tünel oksit tabakası ekleyerek hücrenin elektron toplama verimliliğini ve hücre performansını artırmaktadır. TOPCon hücrelerin N-Type yapısı, düşük güç kayıpları, PID ve LID gibi olumsuz etkilere direnç, uzun ömürlülük ve düşük ışık koşullarında daha iyi performans sunmaktadır.
Albedo Effect
Power Generation (kWh/kWp/Year)
Grass Land
Albedo = 0,2
Send
Albedo = 0,4
White Paint
Albedo = 0,7
N-Type TOPCon 80% (±5 %)
P-Type PERC 70% (±5 %)

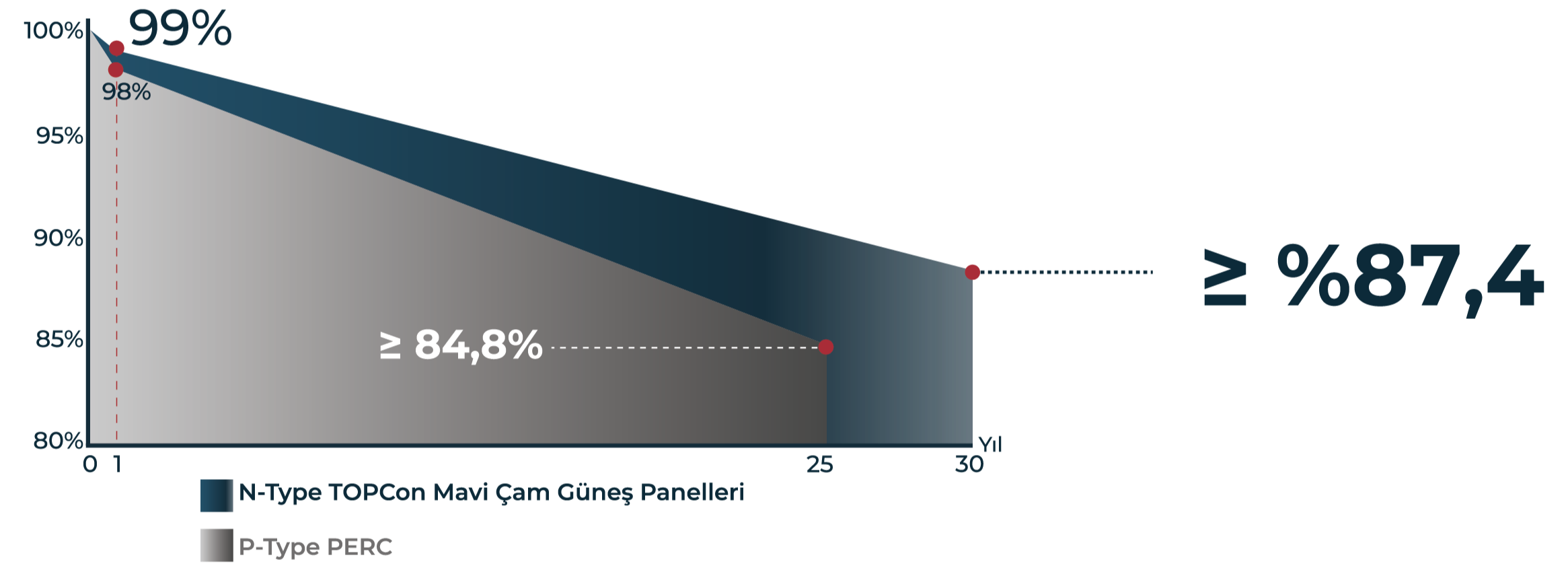

More Power Productivity Yield Per Watt
< 1% First Year LID Effect
30 Years Linear Power Warranty
0.4% Annual Power Loss
12 Years Product Warranty

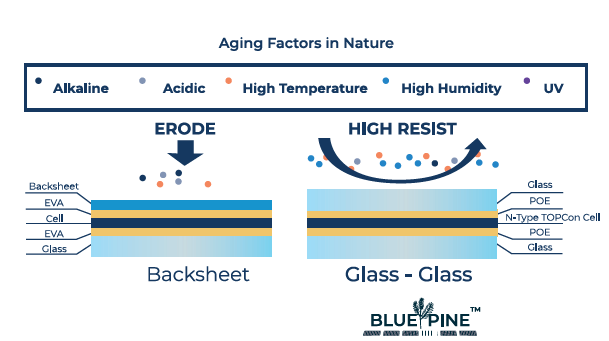

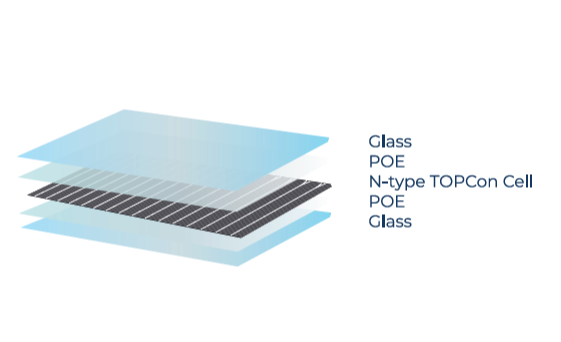

The glass-glass structure of Blue Pine Solar Modules allows you to generate significantly more power per watt (kWh/kW) over 30 years of use compared to P-type PERC solar modules, providing higher power, bifaciality, effective production in difficult conditions and low degradation. In addition, the absence of the effects of LID and LeTID is a significant advantage.

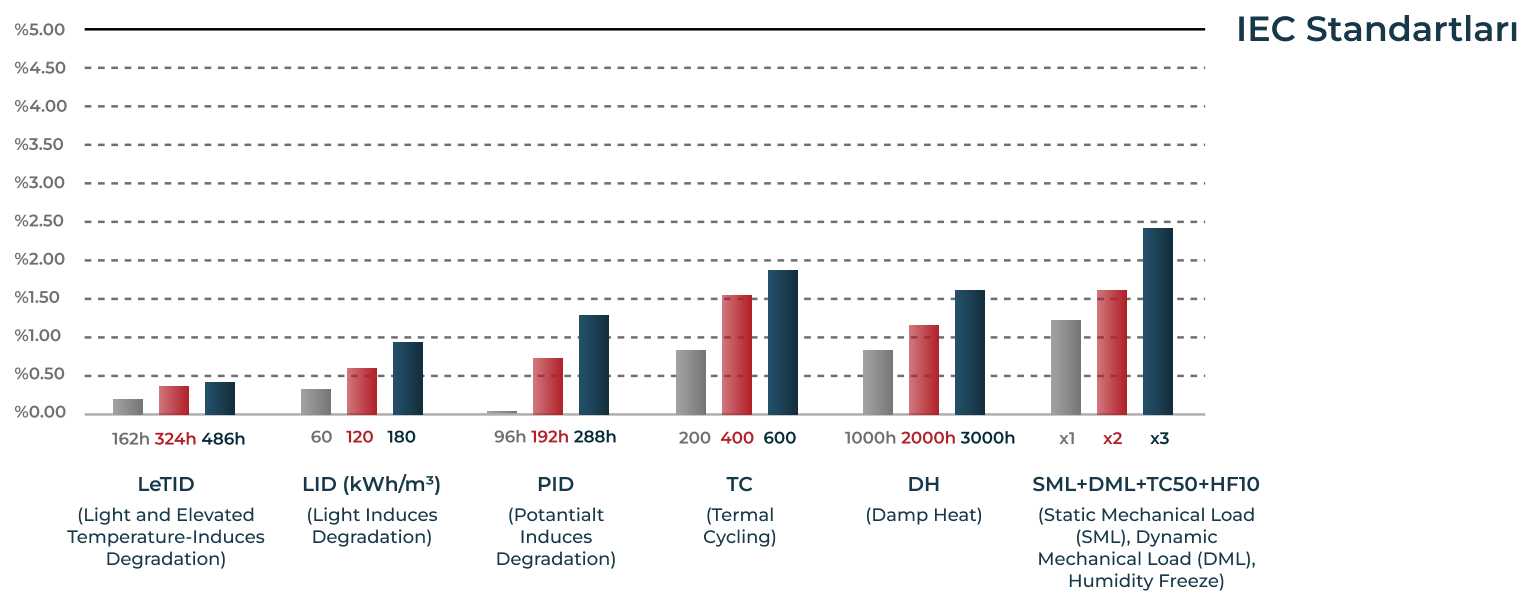

Exceedıng Qualıty Standards
N-Type TOPCon solar modules have undergone various rigorous IEC test standards and have demonstrated outstanding performance with results well below 5%.
